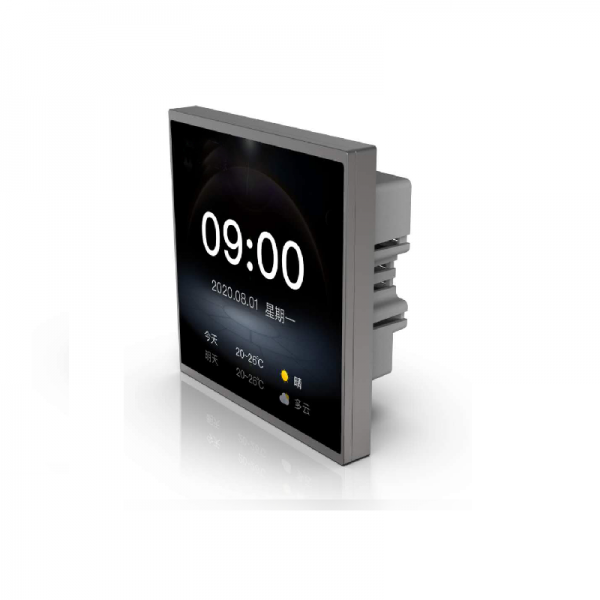

SM-BZ001 Zigbee Gateway
CPU PX30 built-in quad-core Cortex-A35
RAM 2GB
ROM 8GB
Software platform Android 8.1
Port Ethernet port, 100M Ethernet port
Power interface, 220V zero live wire access
2 way relay
1 way 485

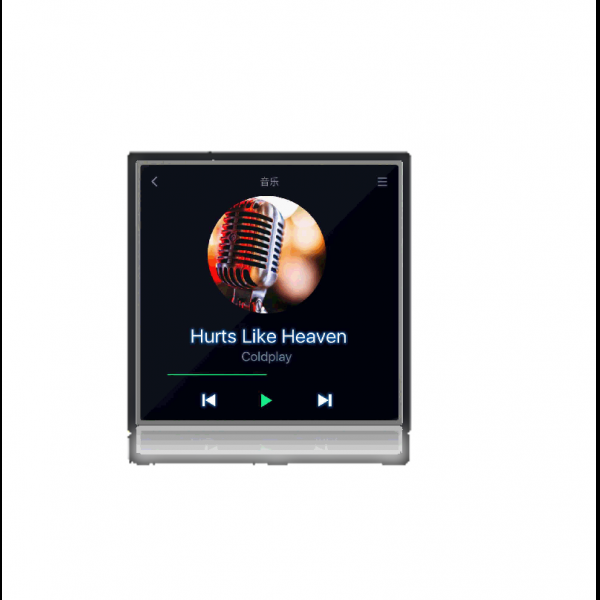

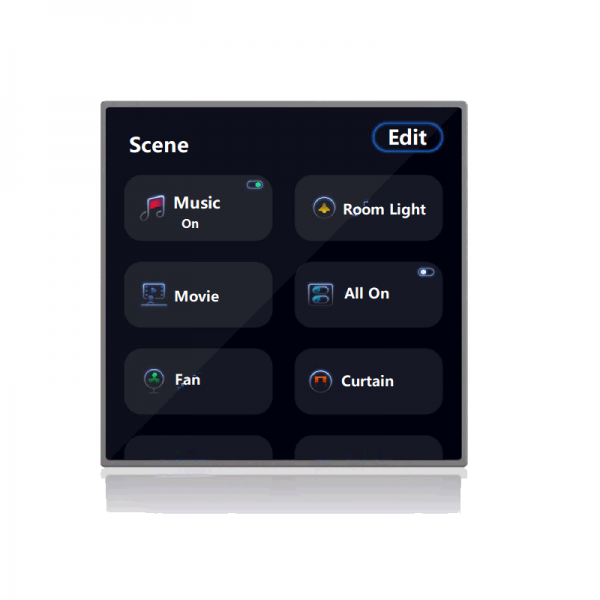

Display Screen display multi-touch capacitive screen, 4 inches, 480*480
Wi-Fi 2.4GHz, uplink 1*1 150Mbps or above
Bluetooth Bluetooth 4.2 supports Bluetooth downlink single point networking
Voice interaction supports smart wake-up, users can use wake-up words for voice wake-up at a distance of 3-5m, and voice interaction with the device;
Support voice control of the operation of various smart home equipment, offline voice control and online operation
Zigbee supports Zigbee downlink networking

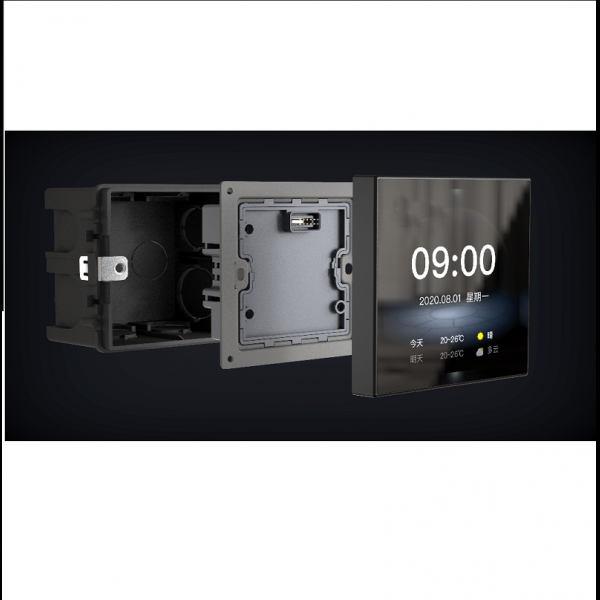

Power board type, in-wall 86 power board
Input, 100 ~ 240 VAC(±10%), 50/60Hz +-3Hz zero live wire
Output, 5VDC/2A
Voice recognition Mic, 2 microphones support voice noise reduction algorithm, support wake-up words within 3-5m far-field wake-up online
Speaker Support 1w speaker
Antenna Wi-Fi, Bluetooth, Zigbee are flexible PCB shell antenna
It is a quad-core Cortex-A35 processor, which is designed for personal mobile Internet devices and other digital multimedia applications. It can adapt to most voice algorithms on the market and run smoothly for customized APP requirements.
The internal integrated ADC can support 8 digital microphone inputs, and the power management chip RK809 integrated with a 1.3wD class amplifier can realize voice interaction with very few external circuits. The CPU supports dual-screen different displays, supports RGB/LVDS/MIPI-DSI and other display interfaces, and can support displays up to 1920x1080 resolution.
In terms of memory, it can support multiple DDR types such as 32bitsDDR4-1600/DDR3-1600/DDR3L-1600/LPDDR3-1600/LPDDR2-1066, up to 4GB of memory, and the best ddr capacity and type can be selected according to customer needs.
PX30 also supports RMII interface, the external PHY chip can support 100M Ethernet function,
In addition, it also supports SDIO3.0, USB2.0HOST&OTG, 4 I2C, 6 UART, 2 SPI, 8 PWM and other rich external interfaces, which can flexibly respond to different functional requirements
