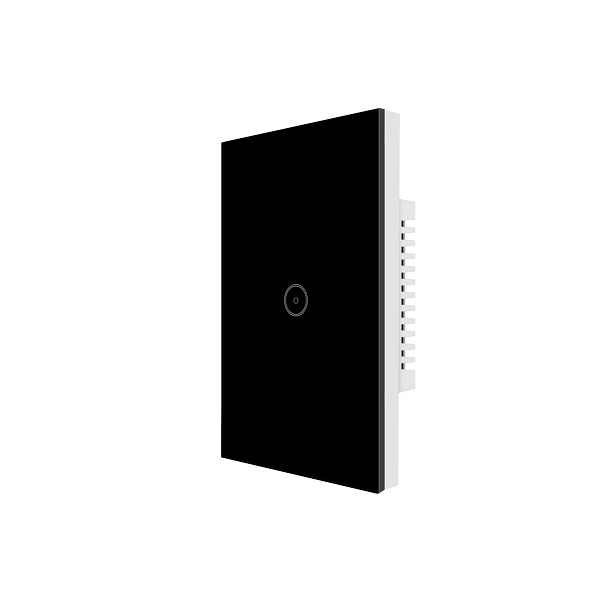

Light Switch

SM-SW102-1

Wi-Fi    SM-SW102-1
ZigBee SM-SW102-1Z

 * Operating Voltage: AC110V/50Hz~60Hz, 10A
* Two way to control the power on/off
* Material: ABS flame retarding polymer
The outer frame is made of aluminum alloy material
* Plug Standard: US
* Power consuming: ≤0.3W
* Working temperature: -20 ~ 45℃ (-4 ~ 113℉)
* Working Humidity: ≤80%
* Radio signal power: 1mW
  • Model SM-SW102-1 SM-SW102-1Z
    Solution Wi-Fi ZigBee
    Chipset ESP8266 EFR32MG13P732
    Protocol 802.11b/g 802.15.4 PHY / MAC

    120 x 74mm Single switch
    cETL listed ID: 5009829
    Certified to CSA Std. C22.2 No. 308
    * Our touch switches comes with 1 Gang and suitable for most of the European countries and Asian Countries.
    * Crystal tempered glass panel will never fade. The switch will always look like new.
    * Fireproof ABS plastic box, prevents excessive heat result in fire, reducing the security risk.
    * With LED indicator, very distinguished in the darkness.

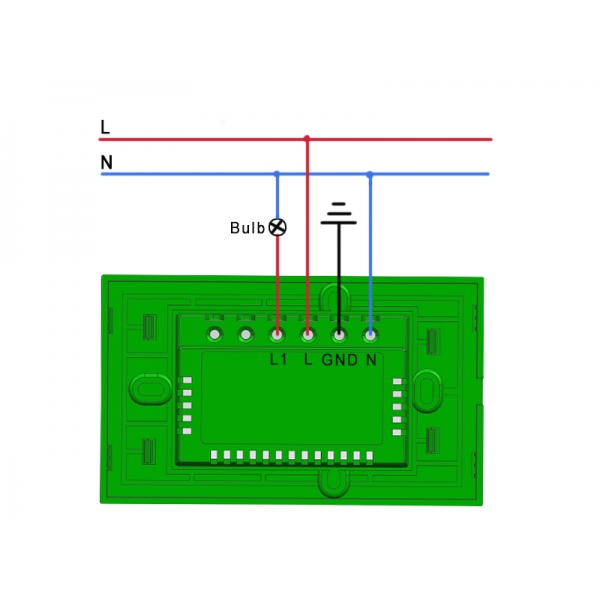

    * Single live wire control, easy to install, replace the old switch directly.
    * Operating Voltage: AC110V-240V/50Hz~60Hz.
    * Switch Dimension: 4.7 x 2.9 x 1.5 in
    * Rated load: each gang less than 300W
    * Self consuming power: Less than 1mA
    * Operating environment: -20~50°C, Less than 95%RH
    * Life long: more than 100,000 times
    *Dimensions: 146x90x48 mm /color box, 540x300x475 mm/carton, 110pcs/carton, 28kg/carton;
    *Weight: 0.25kg /pc with color box;
    Xenon Smart is home automation the easy way: Jinvoo Smart Light Switch seamlessly replaces your old wall light switch and works with any one-way connection light. Easily installable, perfect for DIYers. Neutral wire required. Not recommended for use with a metal faceplate. Download the free app, and control your lights and small appliances from anywhere in the world, right from your phone. No hub or subscription required.
    Why come home to a dark house? Schedule your stuff however you‘d like: Set the porch light to turn on before you get home. Set ceiling fans to come if the outside temperature hits 80. Sync on and off times to sunrise and sunset, and more.
    Works with Jinvoo Smart Home series products, so your lights will "know" if you‘re out of the house, and can turn on or off as you wish. Works with any smartphone or tablet running Android 4.1 and higher or iOS 8 and higher. Electrical Rating 120V/10A/60Hz/1800W.
