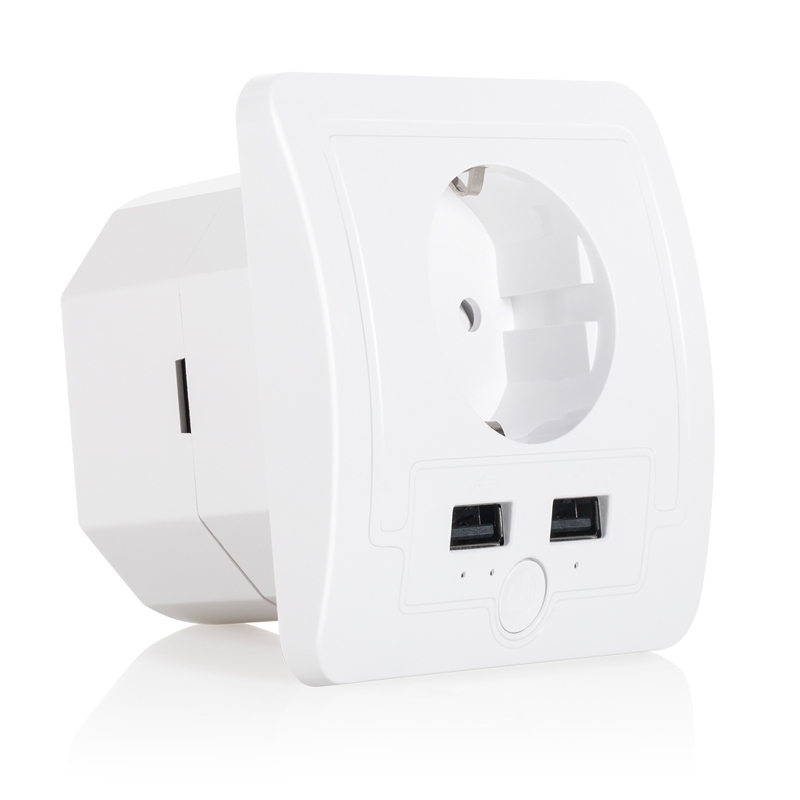

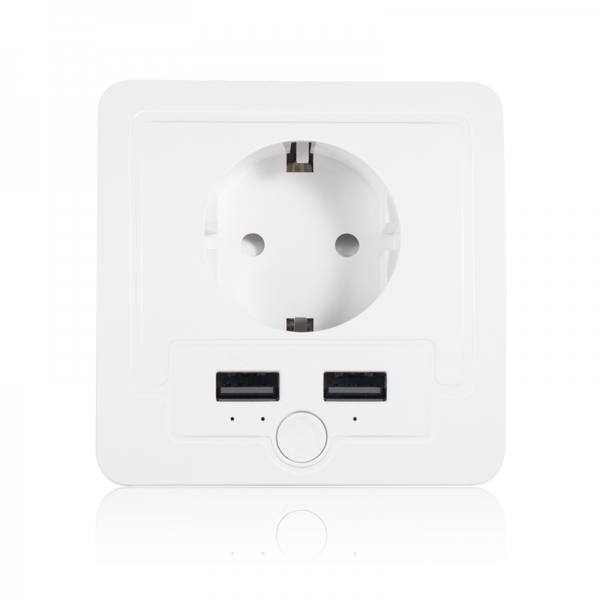

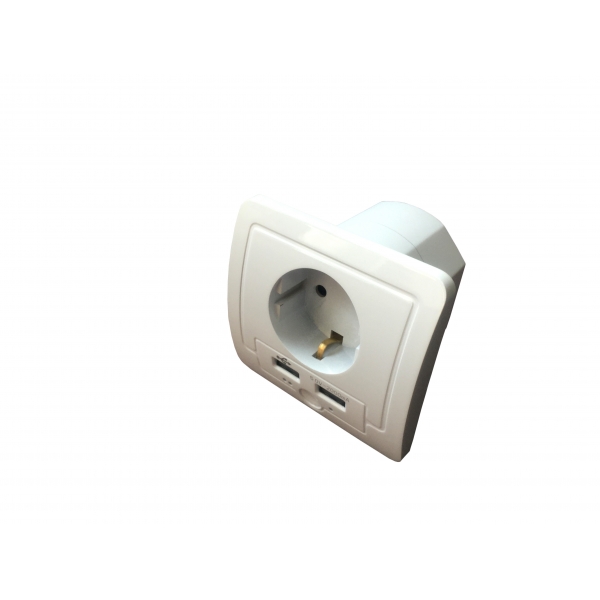

In-Wall Outlet

< >

SM-PW801-E

SM-PW801-E Wi-Fi

SM-PW801-EZ ZigBee
* Works with Amazon Alexa and Google Assistant
* App compatible with iOS and Android

* Max power: 2000W

* Working current: 16A

* Working voltage: AC 110-240/v
* 1 x AC input

* 2 x USB charger
* Material: ABS flame retarding polymer

* Plug Standard:European

* Power consuming: ≤0.3W

* Working temperature: -20 ~ 45℃ (-4 ~ 113℉)

* Working Humidity: ≤80%

* Radio signal power: 1mW

* Radio protocol: Wi-Fi or ZigBee

* Radio rate: 30 meter indoor

Model	SM-PW801-E	SM-PW801-EZ
Protocol	Wi-Fi	ZigBee
Chipset	ESP8266	Silicon Labs, EFR32MG13P732
Note	No hub	Need hub

* Works with Amazon Alexa and Google Assistant
* App compatible with iOS and Android

* Max power: 3000W

* Working current: 16A

* Working voltage: AC 110-240/v
* 1 x AC input

* 2 x USB charger
* Material: ABS flame retarding polymer

* Plug Standard: European

* Power consuming: ≤0.3W

* Working temperature: -20 ~ 45℃ (-4 ~ 113℉)

* Working Humidity: ≤80%

* Radio signal power: 1mW

* Radio protocol: Wi-Fi or ZigBee

* Radio rate: 30 meter indoor

* Radio rate: 50 meter outdoor, depends on building materials and structures.

* Adopt WiFi protocol to secure the success of wireless two way communication

* Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series WiFi module) to enhance the communication range

* Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive

* Overload protection

* Dimension: 86 x 86 x 64 mm;

color box: 100 x 92 x 90 mm;
Carton box: 540 x 300 x 485 mm;
75pcs/carton;
Weight: 17kg/carton;
Weight: 0.13KG/pc;

* HS code: 85366900
