| Model |
SM-SW101-C |
SM-SW101-CZ |
| Protocol |
Wi-Fi |
ZigBee |
| Chipset |
ESP8266 |
EFR32MG13P732 |
| Note |
No hub |
Need hub |
Works with Amazon Alexa,Google Assistant,IFTTT

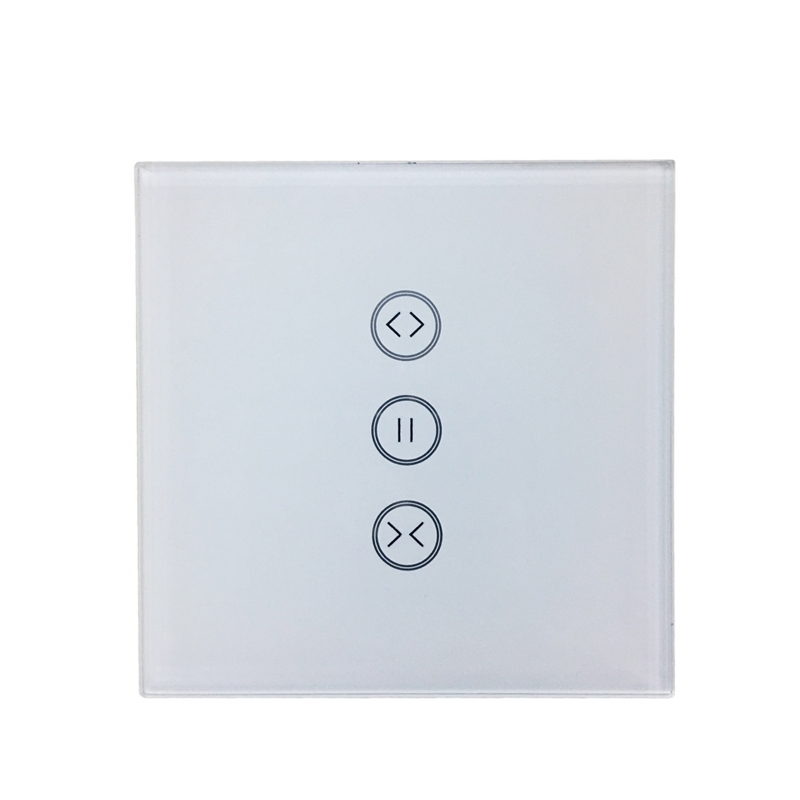

Switch touch is a one way Wi-Fi sensitive control Luxury glass panel wall switch.
It can be paired with IOS/Android app Jinvoo Smart via Wi-Fi,allowing users to remotely turn on/off
the LED and lignts from anywhere at any time.
Its LED back light lets you easily find and turn on the switch at night.
It can be used to control lights or home appliances.
Upgrade your home with this modern,fasionable alternative to traditional light switches.
Power supply: AC100V-240V=10% 50Hz
Working temperature: 0°C~80°C
Switch load power: 0-400W
Standby power consumption: ≤0.5W
Relative humidity: 10% to 93% (non-condensing)
Control：Touch ,app,brightness memory function

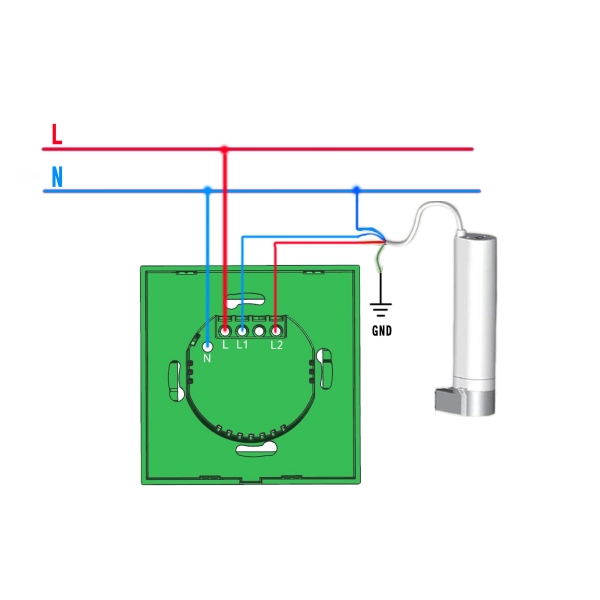

Connection: N (Neutral),
L(Line),
L1 Control(open),
L2 Control(Off),
GND(No need to connect if there isn’t GND in case.)
Product Specifications: (120*74*39)mm, (4.7*2.9*1.5)in
Wi-Fi and ZigBee standard: 802.11b/g/n, 2.4GHz
Wi-Fi and ZigBee save mode: WEP, WPA/WPA2
App: iOS/ Android
*Dimensions: 106x102x42 mm /color box,
540x300x475 mm/carton,
120pcs/carton,
25kg/carton;
*Weight: 0.20kg /pc with color box;
