Chinese Type

SM-SW103-C

Wi-Fi    SW-MS103-C
ZigBee SW-MS103-CZ

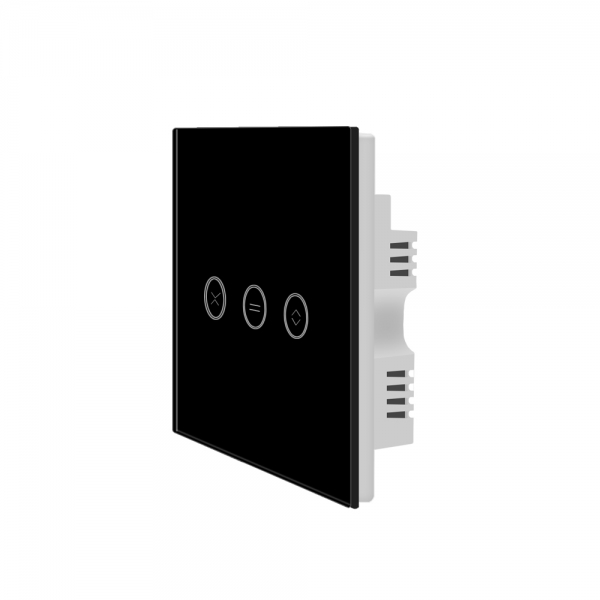

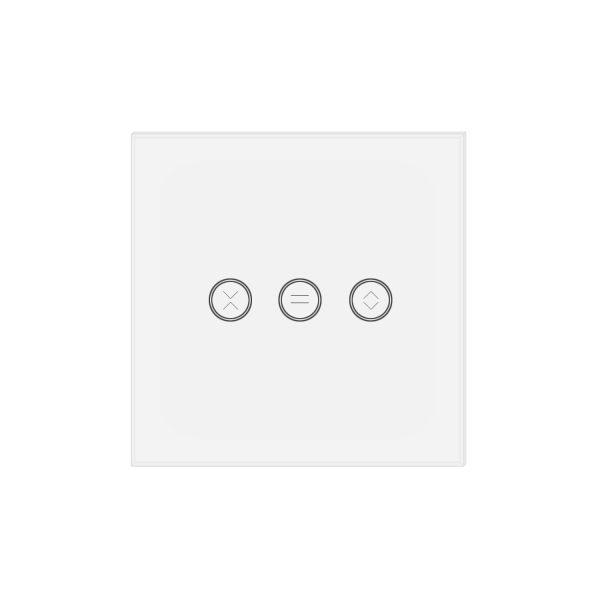

Curtain switch 86 x 86 mm
* Power supply:  AC100V-240V=10% 50Hz
* Working temperature: 0°C~80°C
* Switch load power: 0-400W
* Standby power consumption: ≤0.5W Relative humidity: 10% to 93% (non-condensing)
* Control:Touch, app, brightness memory function
* Connection: N (Neutral), L(Line), L1 Control(open), L2 Control(Off),
                      GND(No need to connect if there isnt GND in case.)
* Radio signal power: 1mW
*Radio Protocol: Wi-Fi / ZigBee
* Radio rate: indoor 30 meters
* Radio rate: 50 meters outdoors, depending on building materials and structure
* App: iOS / Android
*Works with Alexa, Google Assistant and IFTTT
  •
    Model Wi-Fi SW-MS103-C SW-MS103-CZ
    Solution Wi-Fi ZigBee
    Chipset ESP8266 EFR32MG13P732
    Protocol 802.11b/g 802.15.4 PHY / MAC

    Xenon Smart is home automation the easy way: Xenon Smart Light Switch seamlessly replaces your old wall light switch and works with any one-way connection light. Easily installable, perfect for DIYers. Neutral wire required. Not recommended for use with a metal faceplate. Download the free app, and control your lights and small appliances from anywhere in the world, right from your phone. No hub or subscription required.
    Set come stuff to a dark house? Schedule your stuff however you‘d like: Set the porch light to turn on before you get home. Set ceiling fans to come if the outside temperature hits 80. Sync on and off times to sunrise and sunset , and more.
    Works with Xenon Smart Home series products, so your lights will "know" if you‘re out of the house, and can turn on or off as you wish. Works with any smartphone or tablet running Android 4.1 and higher or iOS 8 and higher . Electrical Rating 120V/10A/60Hz/1800W.
    * Our touch switches comes with 1 Gang and suitable for most of the European countries and Asian Countries.
    * Crystal tempered glass panel will never fade. The switch will always look like new.
    * Fireproof ABS plastic box, preventing excessive heat result in fire, reducing the security risk.
    * With LED indicator, very distinguished in the darkness.
    * Single live wire control, easy to install, replace the old switch directly.
    * Operating Voltage: AC110V-240V/50Hz~60Hz.
    * Rated load: each gang less than 300W
    * Self consuming power: Less than 1mA
    * Operating environment: -20~50°C, Less than 95%RH
    * Life long: more than 100,000 times
    * WiFi or ZigBee 2.4GHz
    * Compatiable with iOS/Android
    * Works with Amazon Alexa and Google Assistant
    *Dimensions:
        106x102x42 mm/color box,
        375x355x305 mm/carton,
        66pcs/carton,
     *Weight:
       0.14kg /pc with color box;
       13.5kg/carton (66pcs)
