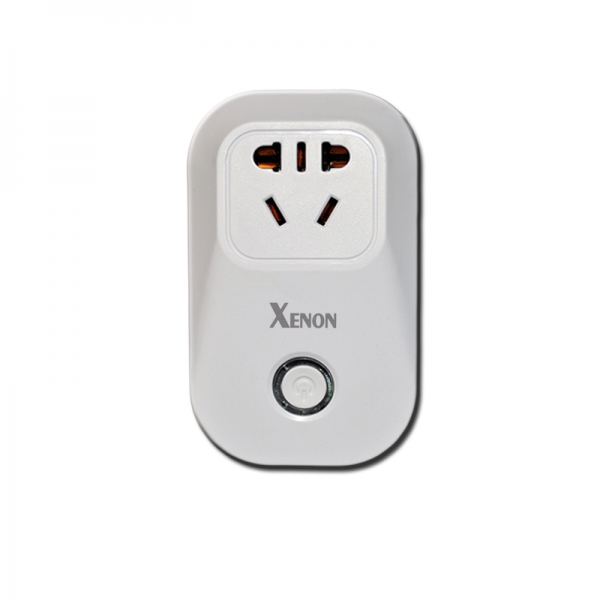

Chinese Type

< >

SM-PW701-C1

Wi-Fi SM-PW701-C1
ZigBee SM-PW701-C1Z
* Max power: 2000W

* Working current: 10A

* Working voltage: AC220V 50/60Hz

* Material: ABS flame retarding polymer

* Plug Standard: Chinese

* Power consuming: ≤0.3W

* Working temperature: -20 ~ 45℃ (-4 ~ 113℉)

* Working Humidity: ≤80%

* Radio signal power: 1mW

* Radio protocol: Wi-Fi

* Radio rate: 30 meter indoor

* Radio rate: 50 meter outdoor, depends on building materials and structures.

* App: iOS/Android

* Works with Alexa, Google Assistant and IFTTT

Model	SM-PW701-C1	SM-PW701-C1Z
Solution	Wi-Fi	ZigBee
Chipset	ESP8266	EFR32MG13P732
Protocol	802.11b/g	802.15.4 PHY / MAC

Max power: 2000W

Working current: 10A

Working voltage: AC220V 50/60Hz

Material: ABS flame retarding polymer

Plug Standard: CN

Power consuming: ≤0.3W

Working temperature: -20 ~ 45℃ (-4 ~ 113℉)

Working Humidity: ≤80%

Radio signal power: 1mW

Radio protocol: Wi-Fi or ZigBee

Radio rate: 30 meter indoor

Radio rate: 50 meter outdoor, depends on building materials and structures.

* Adopt WiFi protocol to secure the success of wireless two way communication

* Higher RF output power (+2.5dBm output power as compared to -2.5dBm 300 series WiFi module) to enhance the communication range

* Very low electricity consumption, meet Europe year 2012 energy-related products requirement directive

* Overload protection

*Dimensions: 116x76x68 mm/color box, 540x300x475 mm/carton, 128 pcs/carton, 22kg/carton;

*Weight: 0.16kg /pc with color box;

* App: iOS/Android

* Works with Alexa, Google Assistant and IFTTT
