Australian Type

< >

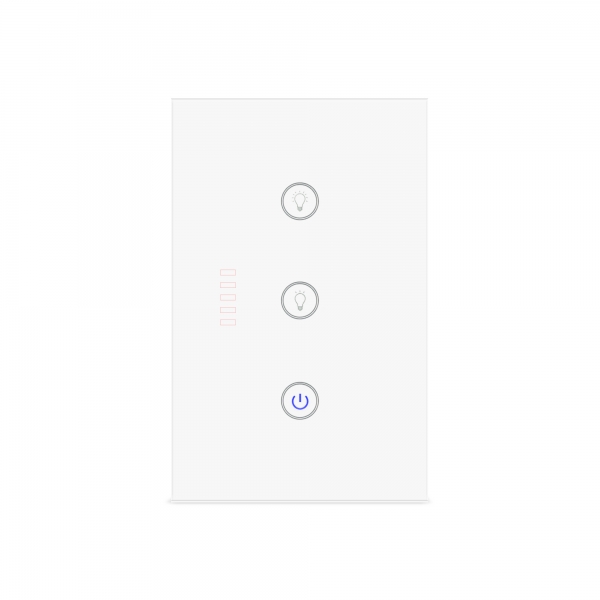

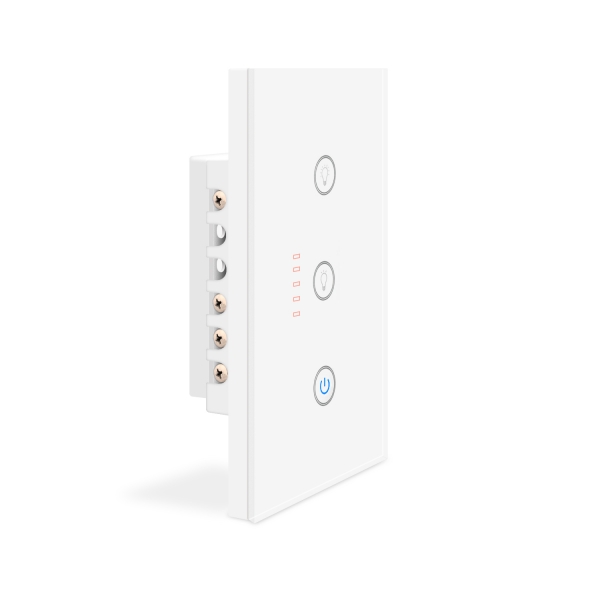

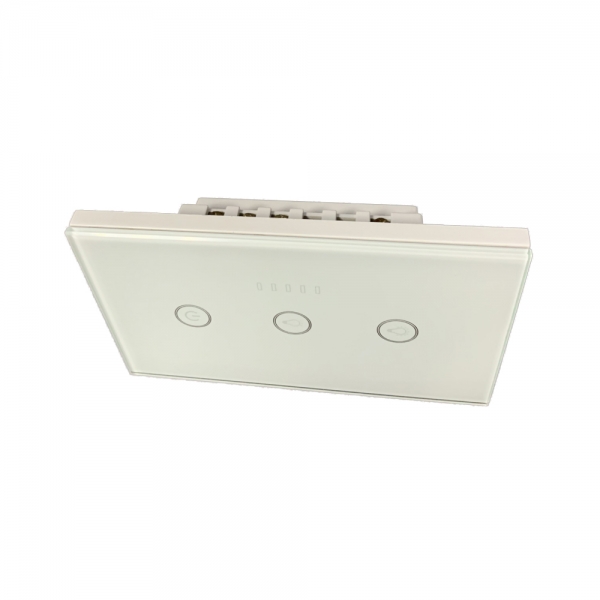

SM-SW102-D

Wi-Fi SM-SW102-DW White
Wi-Fi SM-SW102-DB Black
ZigBee SM-SW102-DWZ White
ZigBee SM-SW102-DBZ Black
Dimmer switch

Power supply: AC100V-240V=10% 50Hz

Working temperature: 0°C~80°C

Switch load power: 0-400W

Standby power consumption: ≤0.5W

Relative humidity: 10% to 93% (non-condensing)

Control：Touch ,app,brightness memory function

Connection: N (Neutral), L(Line), L1 Control(open), L2 Control(Off),

GND(No need to connect if there isn’t GND in case.)

Product Specifications: (120*74*39)mm, (4.7*2.9*1.5)in

Switch Dimension: 4.7 x 2.9 x 1.5 in

Model	SM-SW102-DW (white) SM-SW102-DB (black)	SM-SW102-DWZ (white) SM-SW102-DBZ (black)
Solution	Wi-Fi	ZigBee
Chipset	ESP8266	EFR32MG13P732
Protocol	802.11b/g	802.15.4 PHY / MAC

* Material: plastic ABS+PC and metal frame

* Our touch switches comes with 3 Gang and suitable for most of the European countries and Asian Countries.

* Crystal tempered glass panel will never fade. The switch will always look like new.

* Fireproof ABS plastic box, prevents excessive heat result in fire, reducing the security risk.

* With LED indicator, very distinguished in the darkness.

* Single live wire control, easy to install, replace the old switch directly.

* Operating Voltage: AC110V-240V/50Hz~60Hz.

* Switch Dimension: 4.7 x 2.9 x 1.5 in

* Rated load: each gang less than 300W

* Self consuming power: Less than 1mA

* Operating environment: -20~50°C, Less than 95%RH

* Life long: more than 100,000 times

* App: iOS/Android

* Works with Alexa, Google Assistant and IFTTT

* SAA certified
