Model	SM-SW102-C	SM-SW102-CZ
Solution	Wi-Fi	ZigBee
Chipset	ESP8266	EFR32MG13P732
Protocol	802.11b/g	802.15.4 PHY / MAC

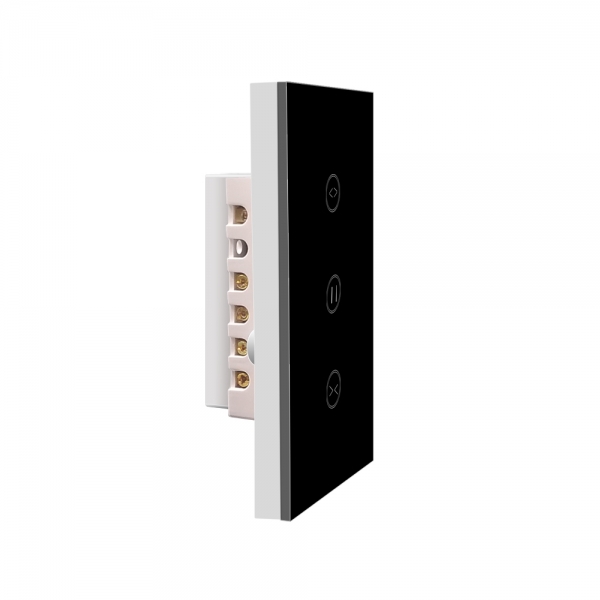

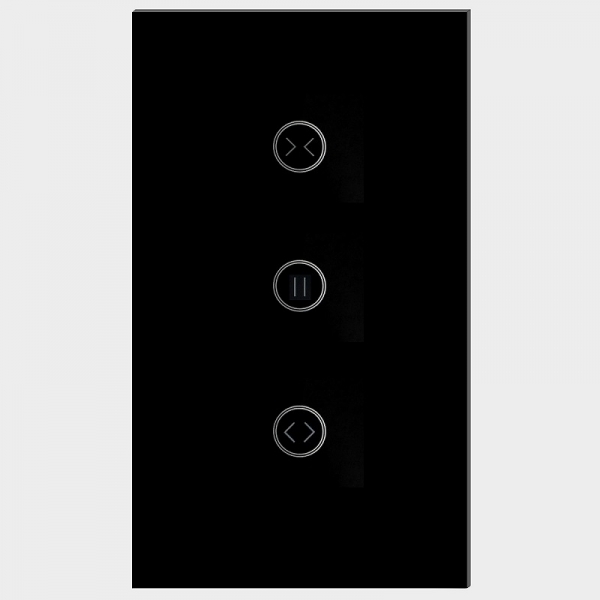

120 x 74 mm curtain switch

Works with Amazon Alexa,Google Assistant,IFTTT

Switch touch is a one way Wi-Fi sensitive control Luxury glass panel wall switch.

It can be paired with IOS/Android app Jinvoo Smart via Wi-Fi,allowing users to remotely

turn on/off the LED and lignts from anywhere at any time.

Its LED back light lets you easily find and turn on the switch at night.

It can be used to control lights or home appliances.

Upgrade your home with this modern,fasionable alternative to traditional light switches.

Power supply:  AC100V-240V=10% 50Hz

* Our touch switches comes with 3 Gang and suitable for most of the European countries and Asian Countries.

* Crystal tempered glass panel will never fade. The switch will always look like new.

* Fireproof ABS plastic box, prevents excessive heat result in fire, reducing the security risk.

* With LED indicator, very distinguished in the darkness.

* Single live wire control, easy to install, replace the old switch directly.

* Operating Voltage: AC110V-240V/50Hz~60Hz.

* Self consuming power: Less than 1mA

* Operating environment: -20~50°C, Less than 95%RH

* Life long: more than 100,000 times

Working temperature: 0°C~80°C

Switch load power: 0-400W

Standby power consumption: ≤0.5W

Relative humidity: 10% to 93% (non-condensing)

Control：Touch ,app,brightness memory function

Connection: N (Neutral), L(Line), L1 Control(open), L2 Control(Off),

          GND(No need to connect if there isn’t GND in case.)

Product Specifications: (120*74*39)mm, (4.7*2.9*1.5)in

Wi-Fi standard: 802.11b/g/n, 2.4GHz

Wi-Fi save mode: WEP, WPA/WPA2

App: iOS/ Android

Dimensions: 146x90x48 mm /color box, 540x300x475 mm/carton, 110pcs/carton, 28kg/carton;

*Weight: 0.25kg /pc with color box;

xenon Smart is home automation the easy way: Xenon Smart Light Switch seamlessly replaces your old wall light switch and works with any one-way connection light. Easily installable, perfect for DIYers. Neutral wire required. Not recommended for use with a metal faceplate. Download the free app, and control your lights and small appliances from anywhere in the world, right from your phone. No hub or subscription required.

Why come home to a dark house? Schedule your stuff however you‘d like: Set the porch light to turn on before you get home. Set ceiling fans to come if the outside temperature hits 80. Sync on and off times to sunrise and sunset, and more.

Works with Jinvoo Smart Home series products, so your lights will "know" if you‘re out of the house, and can turn on or off as you wish. Works with any smartphone or tablet running Android 4.1 and higher or iOS 8 and higher. Electrical Rating 120V/10A/60Hz/1800W.
