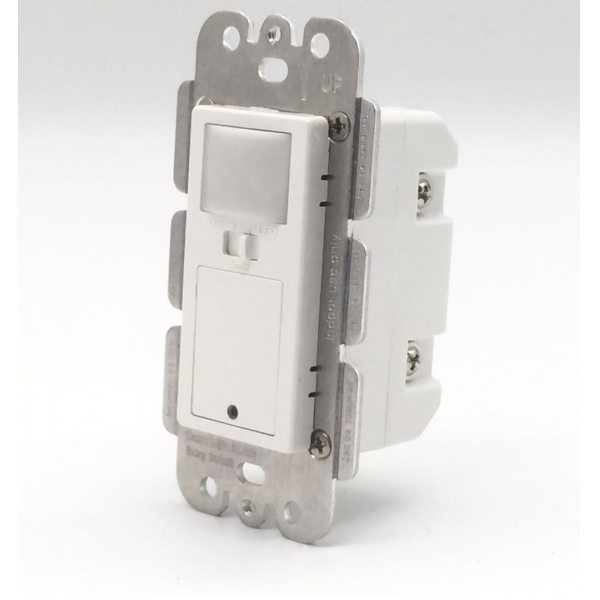

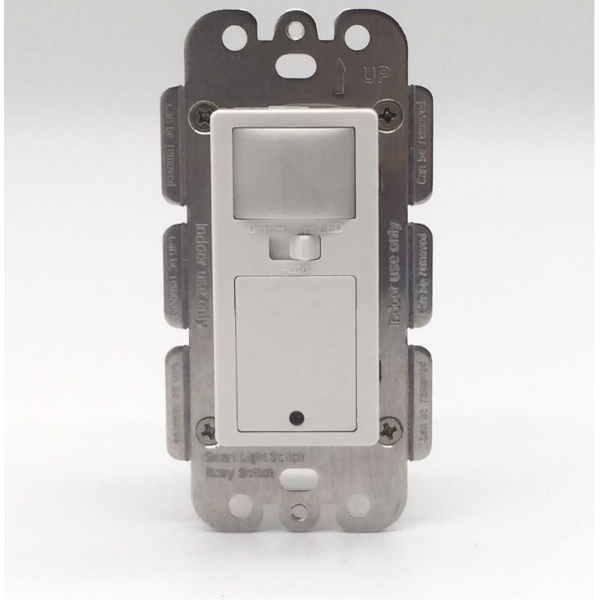

WiFi Light Switch

SM-SW212 motion switch

Technical Parameters:
1, working voltage: AC 100-260V 50-60HZ
2, the ambient temperature: -20 ° C ~ +50 ° C
3. Transmitting power: <2MW;
4, load power: ≤ 800W
  5, self-consumption power: <0.5W
6, detection angle: 180 °;
7, detection distance: 3 ± 1 meter.
8, delay time: 30 seconds
9, light sensitivity: 8 ± 3 LUX
10, size: 120x74x45.5mm
11. Induction principle: The microwave module emits a 2GHz oscillation frequency.
12, output form: relay
13, trigger mode: repeated trigger
14, night light power: 2W warm light

  • Technical Parameters:
    1, working voltage: AC 100-260V 50-60HZ
    2, the ambient temperature: -20 ° C ~ +50 ° C
    3. Transmitting power: <2MW;
    4, load power: ≤ 800W
    5, self-consumption power: <0.5W
    6, detection angle: 180 °;
    7, detection distance: 3 ± 1 meter.
    8, delay time: 30 seconds
    9, light sensitivity: 8 ± 3 LUX
    10, size: 120x74x45.5mm
    11. Induction principle: The microwave module emits a 2GHz oscillation frequency.
    12, output form: relay
    13, trigger mode: repeated trigger
    14, night light power: 2W warm light
    Indicator description
    1. When the wifi signal light is in red, it means the switch is on.
    2. When the wifi signal light is in the blue light, it means the switch is in the off standby state.
    3. When the wifi signal light is flashing green, the switch is in the state of fast distribution network, according to the instructions.
    4. When the wifi signal light is in green slow flashing, the switch is in the AP distribution network state, and the operation is prompted according to the instructions;
    5. When the wifi signal light is steady green, the switch cannot connect to the network. Please check the router network.
    Note: The night light sensor smart switch is in standby mode and the blue light is off.
    Intelligent sensor switch indicator description:
    1. When the signal light is in red, it means the switch is on.
    2. The switch is in the off standby state, the blue signal light is off.
    3. When the wifi signal light is flashing green, the switch is in the state of fast distribution network, according to the instructions.
    4. When the wifi signal light is in green slow flashing, the switch is in the AP distribution network state, and the operation is prompted according to the instructions;
    5. When the wifi signal light is steady green, the switch cannot connect to the network. Please check the router network.

    Function key description:
    1.A represents the button switch, press/release to turn the switch on/off
    1.1Rest the light switch :press any key of the device for 20seconds till light flashes,which indicates a successful reset
    2.B stands for the function switch,
    2.1 When the B toggle switch is OFF, turn off the sensor switch function and the night light function, and retain the function of the smart button switch.
    2.2 When the B toggle switch is in Auto, turn on the sensor switch function, turn off the night light function, and retain the smart button switch function;

    (1) When the B toggle switch is in Auto, the light is automatically turned on when the human body passes near the switch about 3 meters, no manual switch is required.
    (2) When the B toggle switch is in Auto, the light is automatically turned off when the human body movement is not detected for 30 seconds.
    (3) When the switch is in a bright light environment, the lamp is automatically turned off and the automatic sensing function is turned off.
    3. When the B toggle switch is in the LED, turn off the sensor switch function, turn on the night light function, and keep the smart button switch function.
    (1) When the B toggle switch is in the LED, the night light will automatically turn on when the room light is dark.
    (2) When the B toggle switch is in the LED, the night light will automatically turn off when the room light is bright.
